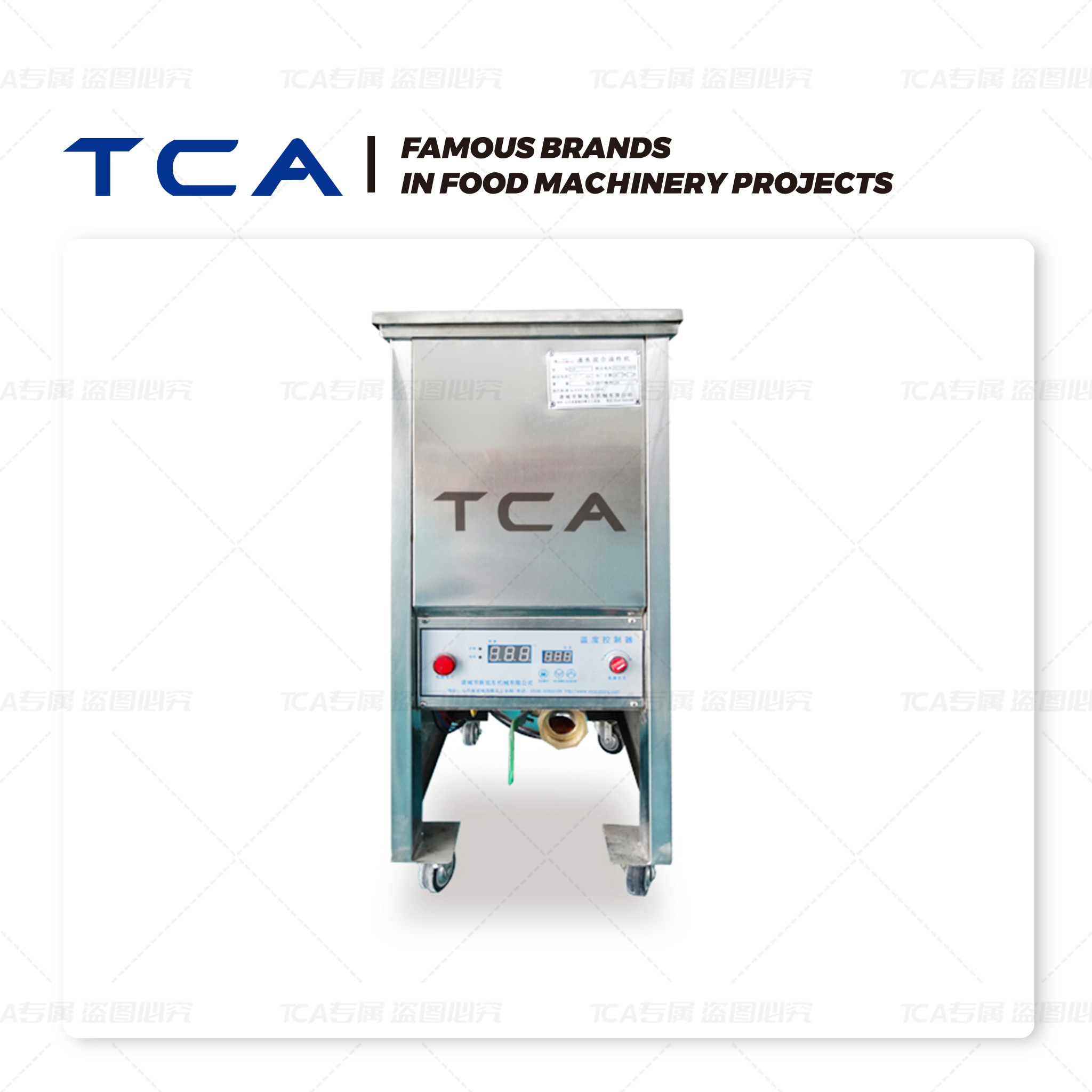

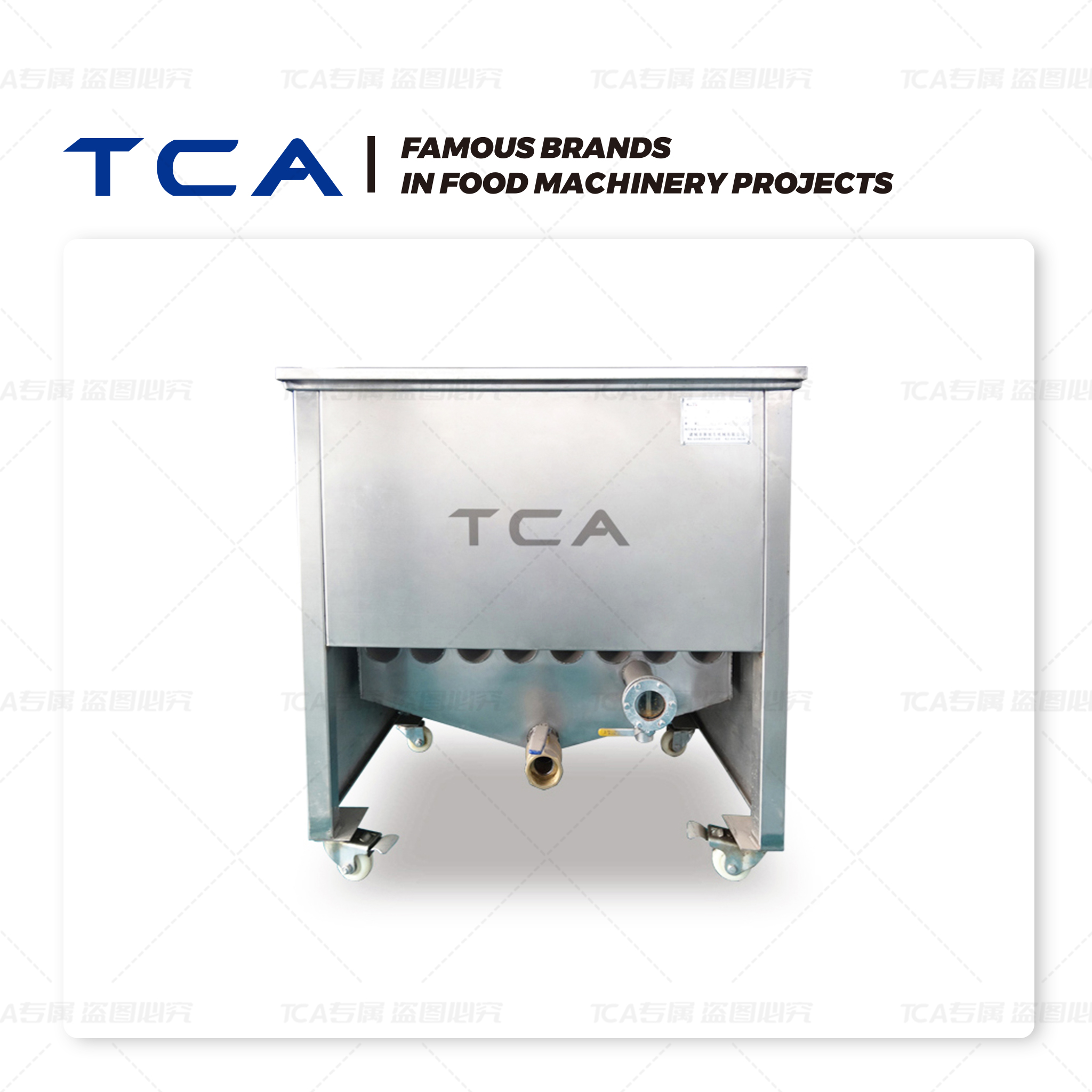

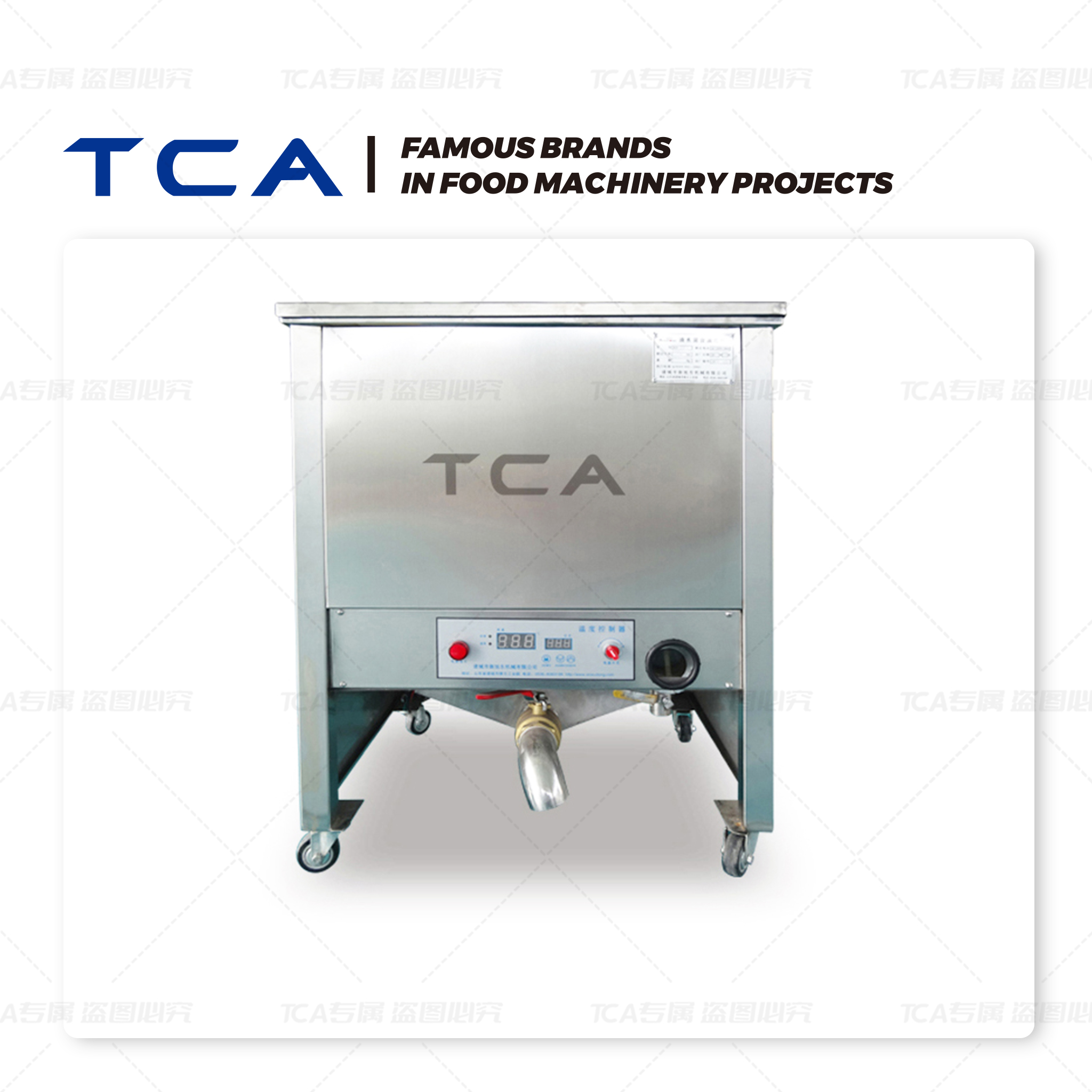

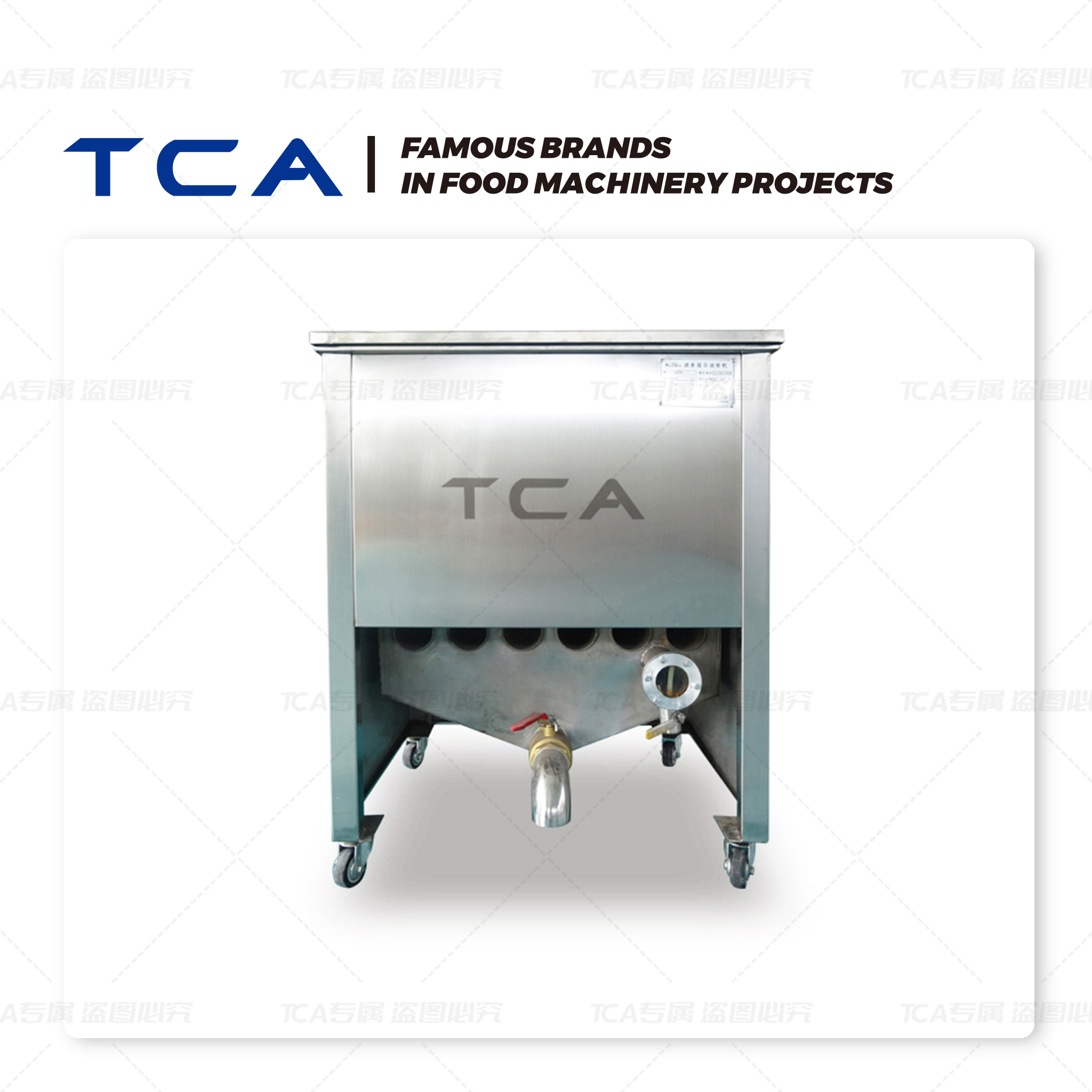

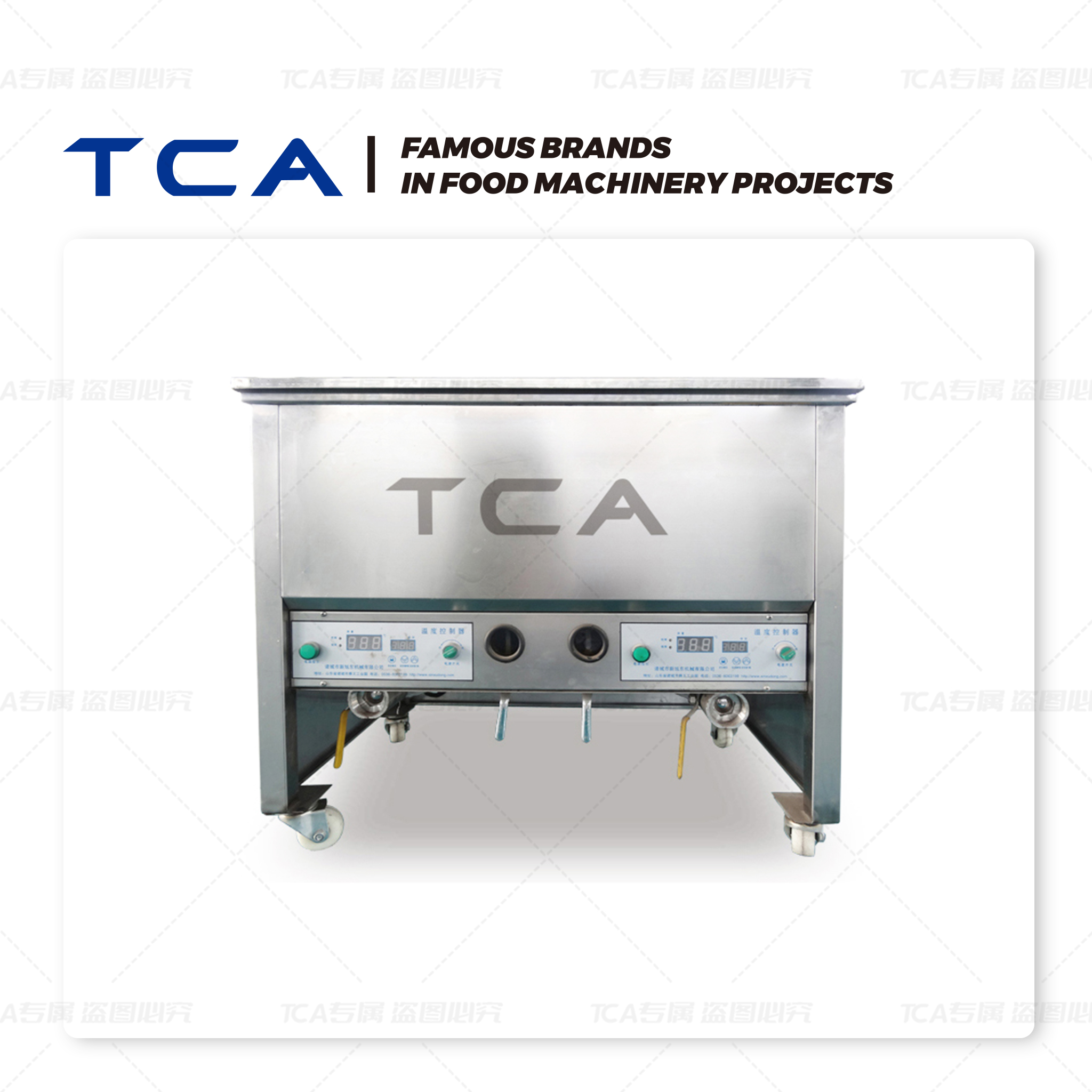

The XD Series batch fryers are the basic frying equipment of Xindong Machinery, utilizing oil-water mixture technology with automatic temperature control and automatic slag scraping. They are suitable for small to medium scale production, laboratory R&D, and as auxiliary units in large production lines. The heating source is electricity, and the whole machine is made of stainless steel specially used for food machinery.
产品简介
Oil-water mixture technology: During frying, residues automatically sink into the water without carbonizing, and can be discharged through the drain valve. The oil in the residues is separated and returned to the oil layer, achieving significant oil saving.
Precise temperature control: Temperature range 0‑300℃, heating temperature adjustable 0‑230℃, accuracy ±1℃. Independent temperature control for the water layer with natural air cooling and forced water circulation ensures the lower water temperature remains ≤80℃.
Easy operation: Automatic feeding, discharging and stirring save labor. Equipped with observation glass tube and oil drain valve detection device for accurate water level monitoring.
Stainless steel construction: High‑quality 304 stainless steel, durable and compliant with food hygiene standards.
Technical Parameters Table
| Model | External Dim. (mm) | Frying Tank Dim. (mm) | Power (kW) | Oil Capacity (kg) | Applicable Products |
|---|---|---|---|---|---|
| XD-300 | 380×600×900 | 300×440×280 | 4.5 | 20 | Prepared foods, fish, pasta, meat, nuts |
| XD-400 | 480×640×900 | 400×440×280 | 6 | 28 | Same as above |
| XD-500 | 580×640×900 | 500×440×280 | 6/9 | 35 | Same as above |
| XD-600 | 680×640×900 | 600×440×280 | 12 | 40 | Same as above |
| XD-650 | 730×640×840 | 650×440×280 | 12 | 45 | Same as above |
| XD-800 | 880×640×900 | 800×440×280 | 15 | 55 | Same as above |
| XD-850 | 930×640×900 | 850×440×280 | 15/18 | 58 | Same as above |
| XD-1000 | 1080×650×950 | 1000×450×300 | 18/24 | 70 | Same as above |
| XD-1200 | 1280×650×950 | 1200×550×260 | 24/36 | 88 | Same as above |
FrequentlyAskedQuestions
我们为完整的加工线提供长期的售后支持，包括技术咨询、故障排除帮助、备件供应和系统升级建议。提供详细的操作手册和维护指南，确保日常操作顺利进行。
我们的解决方案服务通常包括工艺分析、设备配置、生产线布局图、操作指导和技术支持。根据要求，我们还可以通过在线支持协助安装指导、调试和操作员培训。
我们根据您的工厂布局、加工能力和生产要求提供定制解决方案。我们的工程团队可以协助生产线设计和技术规划。
该设备设计用于处理不同尺寸的土豆。对于切割或去皮等某些工艺，可以提供可调节的设置或尺寸分级解决方案，以确保一致的输出质量。
该机器设计用于加工各种食品原料。根据具体型号，它可以处理规定尺寸和湿度范围内的新鲜、冷藏或冷冻材料。为了获得最佳性能，我们建议在订购前确认原材料规格。
准备好开始一个项目了吗？
如果您对我们的任何产品感兴趣或想定制订单，欢迎随时联系我们。我们期待与您建立成功的商业关系。
